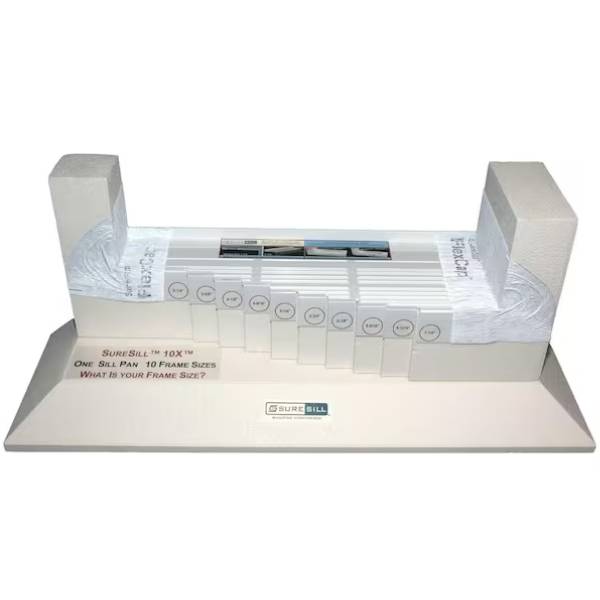

Product Overview
- Meets and exceeds 2015 IRC, 2012 IRC, 2009 IRC, door and window manufacturers requirements, and ASTM 2112 07.
- Adjusts to your frame (jamb) size.
- Provides a level surface for continuous support of doors and windows and a slope for draining water to the exterior.
- Designed to protect your windows and doors from moisture intrusion, eliminating the potential for rot, decay and mold.
- Flex-Caps are easy to align and assemble.
- Designed for 11 different door and window frame (jamb) sizes: 3-1/4”, 3-5/8”, 4-1/8”, 4-9/16”, 5-1/4”, 5-3/4”, 6-1/8”, 6-9/16”, 6-13/16” and 7-1/4”.

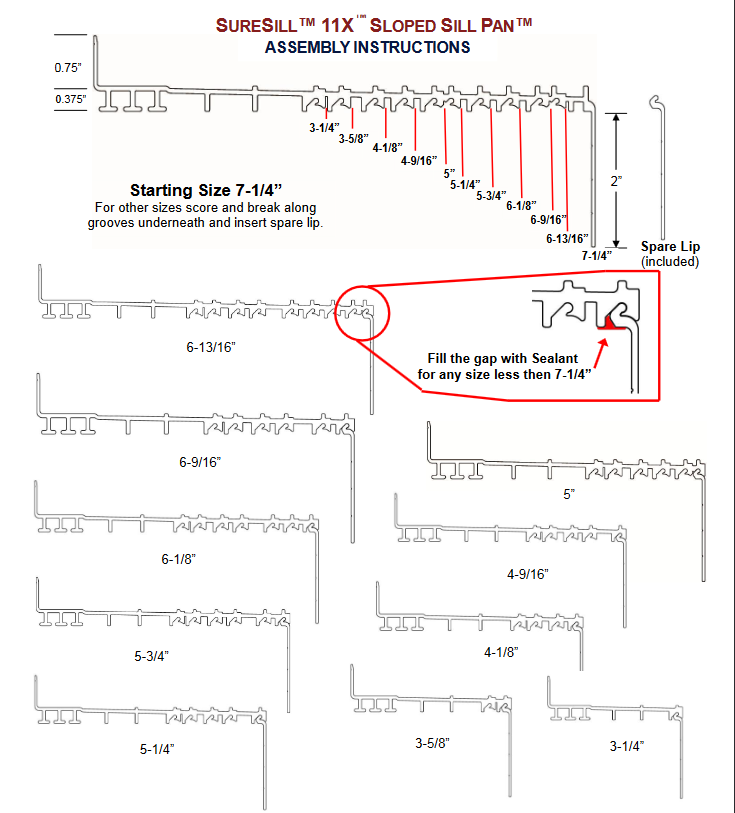

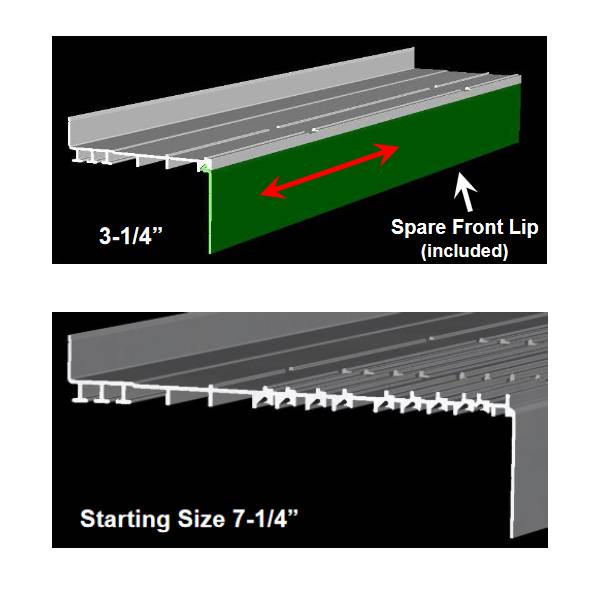

- Score and break as needed and insert spare front lip.
- Protect your investment with a SureSill sloped sill pan for any door or window up to 12 ft. – 6 in. wide.
- Includes Flex-Caps as end dams.
- Can easily be cut to fit your rough opening.
- 10-Limited year warranty.
SureSill 11X Adjustable Sill Pan Specifications
- Assembled Depth (inches) 7.5″
- Assembled Height 2.5″
- Assembled Width 80″
- Product Height .75″
- Product Length 80″
- Product Width 7.5″
- Product Weight 7 lbs.
- Material Plastic
- Color Family White
- Door type Exterior (pre-hung)
End Caps (Rigid end caps):
For 39" - L and R included (Flexible)
For 78" - 2L and 2R included (Flexible)
TECHNICAL RESOURCES
×
Did you know that purchasing the sill pan with coupling and two 40" pieces instead of the single 80" piece can save you significantly on shipping costs and qualify you for free shipping?
It's true! By splitting the longer section into two, you'll avoid costly oversized item fees. Don't miss out on these savings!
choose the 2 x 40" option, add a coupling and the PVC Cement for a smarter purchase.
